NewTechWood Shadowline Wall Cladding

Cladding · Shadow-gap board cladding

Being fully capped, our Shadowline cladding boards are impervious to water absorption.

Newtechwood

NewTechWood Shadowline Wall Cladding

Cladding · Shadow-gap board cladding

Being fully capped, our Shadowline cladding boards are impervious to water absorption.

Select colours and profiles to add them to your shopping list.

Select colour

Profile

Main profileUS31 — 142mm x 13mm x 4.88m
Specs142mm × 13mmPart noUS31UOMlength

Description

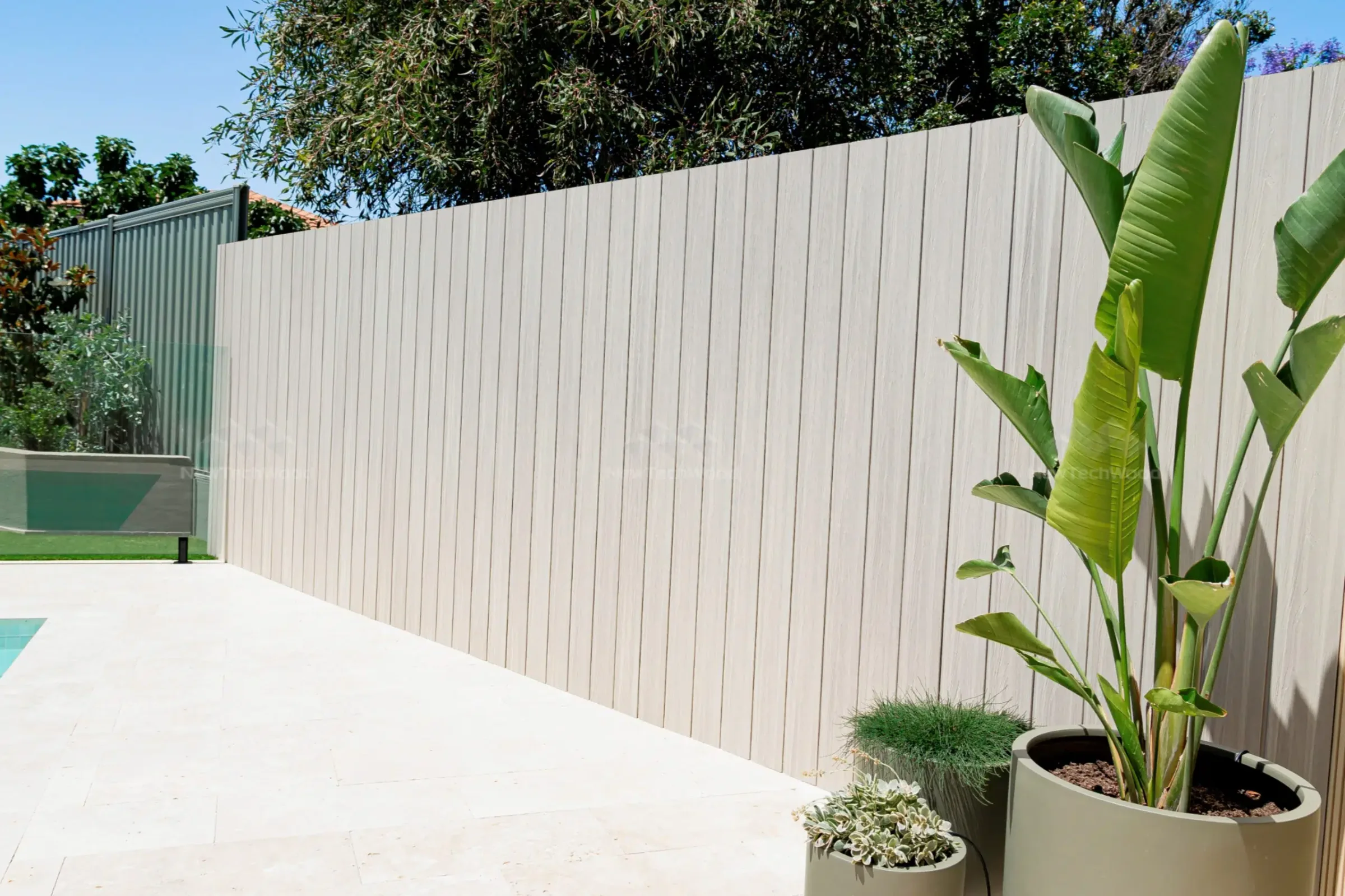

Being fully capped, our Shadowline cladding boards are impervious to water absorption. Each composite panel utilises hidden fixings that hold them perfectly in place and raise them up from the wall joist system, allowing air circulation to flow between the cladding joists. Your timber-look weatherboard cladding will withstand all conditions without requiring strenuous maintenance. Our weatherboard Shadowline cladding boards can be installed in a series of creative ways; you’re no longer limited to walls; these days, we are cladding kitchens, ceilings, outdoor settings, fences, and more.

Performance

Moisture resistant5 colourways

Installation guide · newtechwood.com.auNewTechWood Shadowline 2025 CodemarkInstallation guide · newtechwood.com.auTrim Kits PDFDesign guide · newtechwood.com.auDesign guideWebsite · newtechwood.com.auNewtechwood website

1

Framing

Timber BattenTimber battens used on-stud or spanning horizontal structural framing at maximum 500mm spacing (horizontal boards) or as vertical furring (vertical boards), screw-fixed at maximum 600mm spacing.
Specs—Part no—UOMlength
BattensAluminium or pressure treated wood battens forming the backing/support structure behind cladding boards; minimum thickness 25mm, spaced no more than 500mm apart center to center.
Specs—Part no—UOMlength
Steel Top-Hat BattenSteel top-hat battens used as an alternative to timber battens for vertical cladding installation, fixed with 2 screws per stud.
Specs—Part no—UOMlength
Cavity Batten - Steel Top-HatSteel Top-Hat (horizontal), 50x25x0.75mm BMT G550, OR Timber (horizontal or vertical-on-stud), 70x35mm, H3 treated, MGP10, chamfered top edge & castellated to provide minimum open area of 1000mm2/m.
Specs—Part no—UOMlength
2

Trims

J-TrimTrim profile used for window installation (vertical and horizontal) on wall cladding systems.
Specs—Part no—UOMpack
Alusions F-TrimAluminium F-Trim used together with J-Trim for window installation on wall cladding systems.
Specs—Part noCA53UOMpack
Outside Corner TrimExternal corner trim for vertical and horizontal cladding board installation.
Specs—Part no—UOMpack
Inside Corner TrimInternal corner trim for vertical and horizontal cladding board installation.
Specs—Part no—UOMpack
J-Trim / Aluminium Trim BaseBase trim installed along the base of the wall, ensuring minimum ground clearance is maintained (Concrete Slab Edge detail).
Specs—Part no—UOMpack
H-Trim Base (For US31 - 13mm)Used at vertical and horizontal joints.
Specs—Part noAA45UOMpack
Cladding Trim Kit (Shadowline)Finishing trim kit for Shadowline cladding (end/corner/butt joint/J-trim/window flashing), colour-matched to board
Specs—Part no—UOMpack
F-TrimOutermost edge (end) trim for vertical and horizontal cladding board installation.
Specs—Part no—UOMpack
H-Trim CoverH-Trim Cover, used at vertical and horizontal joints.
Specs—Part noCA49UOMpack
Outside Corner Trim BaseTrim installed at outside corners of cladding installation (Outside Corner detail).
Specs—Part no—UOMpack
H-TrimButt-joint trim used to join cladding boards end-to-end at butt joists/joints.
Specs—Part no—UOMpack
Inside Corner Trim Base (For US31 - 13mm)Inside Corner Trim Base, used at internal corners.
Specs—Part noAA46UOMpack
Inside Corner Trim CoverInside Corner Trim Cover, used at internal corners.
Specs—Part noCA50UOMpack
F-Trim BaseTrim installed at outermost edges of the cladding wall (Outermost Edge detail).
Specs—Part no—UOMpack
H-Trim BaseTrim installed at horizontal and vertical expansion joints.
Specs—Part no—UOMpack
J-Trim Perforated (For US31)Perforated J-Trim used at window side, for Shadowline US31 fascia/cladding panel.
Specs—Part no—UOMpack
F-Trim Cover (For US31 - 13mm)Used at the end of the wall.
Specs—Part noCA48UOMpack
F-Trim BaseF-Trim Base, used at the end of the wall.
Specs—Part noAA44UOMpack
J-Trim Non-Perforated (For US31)Non-perforated J-Trim used at window side, for Shadowline US31 fascia/cladding panel.
Specs—Part no—UOMpack
Outside Corner Trim Base (For US31 - 13mm)Used at external corners.
Specs—Part noAA47UOMpack
Capped Aluminium Cover (Base Trim Cover)Capped aluminium cover installed to base trims to finish the wall installation
Specs—Part no—UOMeach
Outside Corner Trim CoverOutside Corner Trim Cover, used at external corners.
Specs—Part noCA51UOMpack
Window FlashingWindow flashing for US31 / UH61 / UH58 / UH93, 81.5mm w x 81.5mm h
Specs—Part noCA41UOMpack
End Trim Mill Finish Base & Cover Kit (For US31 - 13mm)End trim base & cover kit for US31. CA48 base: 51mm w x 46mm h; AA44 cover: 47.5mm w x 21mm h
Specs—Part noCA48AA44ZXUOMpack
Inside Corner Trim Mill Finish Base & Cover Kit (For US31 - 13mm)Inside corner trim base & cover kit for US31. CA50 base: 68mm w x 45mm h; AA46 cover: 48mm w x 48mm h
Specs—Part noCA50AA46ZXUOMpack
Cavity CloserSteel Angle cavity closer, 60x25x0.42mm BMT Z150, with phi 3mm holes providing open area of 1000mm2/m.
Specs—Part no—UOMlength
Outside Corner Trim Mill Finish Base & Cover Kit (For US31 - 13mm)Outside corner trim base & cover kit for US31. CA51 base: 65mm w x 65mm h; AA47 cover: 52.5mm w x 38mm h
Specs—Part noCA51AA47ZXUOMpack
Butt Joint Trim Mill Finish Base & Cover Kit (For US31 - 13mm)Butt joint trim base & cover kit for US31. CA49 base: 56mm w x 16mm h; AA45 cover: 34mm w x 21mm h
Specs—Part noCA49AA45ZXUOMpack
J Trim Perforated (For US31)J trim perforated for US31, 25.5mm w x 40.5mm h
Specs—Part noCA42UOMpack
J Trim Non-Perforated (For US31)J trim non-perforated for US31, 25.5mm w x 40.5mm h
Specs—Part noCA42BUOMpack
Aluminium Starter ProfileAluminium starter profile - 3m length
Specs—Part noAW02UOMpack
3

Fixings

ScrewsScrews used to secure cladding board onto the batten (Step 3.3). Specific fixing SKU/gauge not stated in this section.
Specs—Part no—UOMpack
Batten Fixing ScrewsScrews used to attach battens to the wall surface at a maximum of 500mm on center for vertical cladding installation.
Specs—Part no—UOMpack
Batten Fixing ScrewScrew used to fix Timber or Steel Top-Hat battens to structural framing, per System Components and Materials section.
Specs—Part no—UOMpack
Fascia / Screening Screws8G x 50mm fascia/screening screw, timber fix
Specs—Part noCSUOMpack
Screw - Locking Screw (WJ063)Screw, used when locking the board into AW08, M3x12mm, SS304.
Specs—Part noWJ063UOMpack
Screw - Batten to FrameSteel Top-hat batten to steel frame: 12g x 25mm, Hex head self-drill, min. Class 3, 2 per stud. Timber Frame: 12g x 60mm, SS304 bugle batten, 2 per stud. Timber batten to Timber/Steel frame: 12g x 60/80mm, SS304 bugle batten, 2 per stud.
Specs—Part no—UOMpack
Screw - Clip/Trim to Timber BattenScrew for fixing Clip/Trim to Timber Batten, 10g x 25mm, SS304 Self-Tapping pan head.
Specs—Part no—UOMpack
Wall Cladding ClipWall cladding secret-fix clip
Specs—Part noAW08UOMpack
Screw - Clip/Trim to Steel BattenScrew for fixing Clip/Trim to Steel Batten, 10g x 20mm, SS304 Self-Tapping pan head.
Specs—Part no—UOMpack
Stainless Steel Locking ScrewsStainless steel locking screws, 4G x 12mm
Specs—Part noWJ63UOMpack
Rubber Stand Off SpacersRubber standoff spacer for wall cladding installation
Specs—Part noT7UOMpack
4

Tools

ShimsUsed to ensure battens are flat and level against the wall surface where necessary.
Specs—Part no—UOMeach
5

Barriers

Breathable Wall WrapSolitex Extasana Wall Weather Resistive Barrier.
Specs—Part no—UOMroll
Wall Wrap Compatible PatchesPro clima NAIDECK Patches to all screws penetrating.
Specs—Part no—UOMpack
6

Sealants

Wall Wrap Compatible TapeTescon Extora Weathertight Sealing Tape used at joins of Solitex Extasana.
Specs—Part no—UOMroll
Wall Wrap Compatible Penetration TapeTESCON EXTOSEAL sill tape used around framed openings and perimeter of Solitex Extasana.
Specs—Part no—UOMroll
Adhesive SealantOrcon All Round General Purpose Sealant or similar.
Specs—Part no—UOMtube
