Newtechwood

NewTechWood Screening & Fencing

Screening · Composite privacy screening / slat fencing

Composite screening and fencing profiles including DIY Quick Panel and post options.

Select colours and profiles to add them to your shopping list.

Select colour

Profile

Main profileUS36 — 70mm x 17mm
Specs70mm × 17mmPart noUS36UOMlength

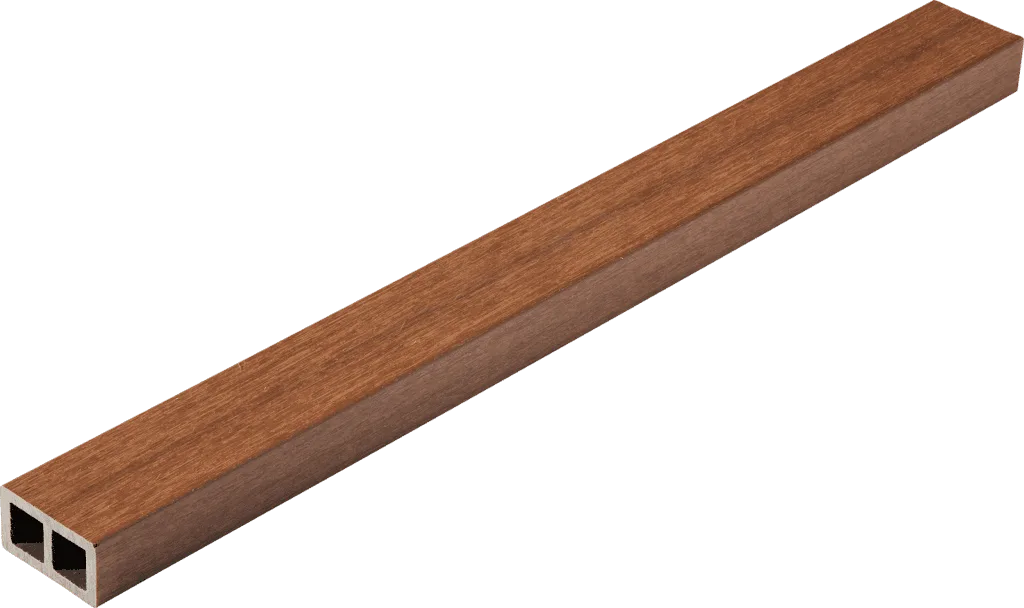

Additional profileUH55 — 56mm x 30mm x 5.4m
Specs56mm × 30mmPart noUH55UOMlength
Additional profileUH122R (DIY Quick Panel) — 175mm x 22mm x 2.7m
Specs175mm × 22mmPart noUH122RUOMlength
Additional profileUS06 — 138mm x 15mm
Specs138mm × 15mmPart noUS06UOMlength
Additional profileUS154R (post) — 55mm x 55mm x 2.7m
Specs55mm × 55mmPart noUS154RUOMlength
Additional profileUS07 — 138mm x 23mm
Specs138mm × 23mmPart noUS07UOMlength
Additional profileUH17 — 60mm x 42mm
Specs60mm × 42mmPart noUH17UOMlength
Additional profileUH25 — 100mm x 52mm
Specs100mm × 52mmPart noUH25UOMlength

Description

Composite screening and fencing profiles including DIY Quick Panel and post options.

Performance

Moisture resistant3 colourways

Installation guide · newtechwood.com.auUH122R Quick Panel Installation Guide V1 2025Design guide · newtechwood.com.auDesign guideTechnical guide · newtechwood.com.auTechnical guideWebsite · newtechwood.com.auNewtechwood website

1

Trims

L-Trim (US154R)L-Trim, used on the outermost edges and the outside corners of the Quick Panel cladding system
Specs—Part noUS154RUOMpack
Aluminium Hidden Face Fix Fence Rail Cover - 5mAluminium cover profile for the hidden face fix fence rail, colour matched to rail.
Specs—Part noST RAILCOVER5MUOMlength
2

Caps

End Caps to suit NewTechWood BattenEnd caps designed to fit the NewTechWood UH55 composite hollow screening batten, recommended for top and bottom of each batten.
Specs—Part noEC-UH55UOMpack
Post End Caps (65mm)Black plastic post end caps, tapped into place with rubber mallet.
Specs—Part noST POST CAPUOMeach
3

Rails

Aluminium Hidden Face Fix Fence Rail - 5mAluminium rail with hidden face fix design used for top and bottom horizontal rails in pool fence construction.
Specs—Part noST RAIL5MUOMlength
4

Fixings

#8 x 25 SS304 Phillips Recess Pan Head Self-tapping ScrewUsed when fixing the board onto the (timber) batten. Screws not included — sourced/supplied by builder/installer.
Specs—Part no—UOMpack
Fascia Face-Fixing ScrewScrew used to face-fix the fascia board to a rim joist at a 90° angle; installer must pre-drill oversized/routed holes to allow for expansion and contraction, and must be positioned at least 38mm x 38mm from ends and board width.
Specs—Part no—UOMpack
MG1 ClipStainless steel locking clip enabling breathability so boards can expand and contract without warping, distorting, or buckling.
Specs—Part noMG1UOMpack
#8 x 25 SS410 Phillips Recess Pan Head Self-drilling ScrewUsed when fixing the board onto the metal batten. Screws not included — sourced/supplied by builder/installer.
Specs—Part no—UOMpack
MG2 ClipStainless steel clip that secures the board and controls the direction in which expansion and contraction takes place.
Specs—Part noMG2UOMpack
#8 x 35 SS410 Phillips Recess Pan Head Self-drilling ScrewUsed when face-fixing the board onto the metal batten. Screws not included — sourced/supplied by builder/installer.
Specs—Part no—UOMpack
Washers (for fascia fixing)Washers used when fixing larger pre-drilled holes on fascia boards to allow for expansion and contraction.
Specs—Part no—UOMpack
Coloured Head Tek ScrewsColour-matched tek screws used to fix top and bottom horizontal rails to posts via 40mm brackets.
Specs—Part no—UOMpack
Fascia / Screening Screws8G x 50mm fascia/screening screw, timber fix
Specs—Part noCSUOMpack
Galvanized Tek ScrewsGalvanized tek screws used to fix NewTechWood battens to horizontal rails, one screw recommended per fixing point.
Specs—Part no—UOMpack
WasherOptional washer applied under screw head when the pre-drilled hole size is more than 2mm smaller than the screw head size, to accommodate expansion/contraction.
Specs—Part no—UOMeach
5

Brackets

40 x 40mm Rail BracketBracket used to fix top and bottom horizontal rails to posts.
Specs—Part noST BRACKETUOMeach
6

Posts

Aluminium Post - SH Black40mm square edge aluminium post used for pool fence, 2.1m length, concreted into footings.
Specs—Part noST POSTUOMlength
7

Tools

Rubber MalletTool used with a non-metal support block to nudge decking boards into place during installation.
Specs—Part no—UOMeach
Carbide Tip Blade (woodworking)Recommended carbide-tipped blade for cutting NewTechWood composite battens with standard woodworking tools.
Specs—Part no—UOMeach
Metal Cutting Blade/EquipmentAppropriate metal cutting blades and equipment for cutting the aluminium fence profiles (posts, rails, brackets).
Specs—Part no—UOMeach
8

Connectors

Corner StakesCorner stakes used to form and hold gate frame corners, hammered into gate frame sections with a rubber mallet.
Specs—Part no—UOMeach
9

Consumables

Concrete Bag (20kg)Bagged concrete used for setting posts in footings, approximately two 20kg bags recommended per post.
Specs—Part no—UOMeach
